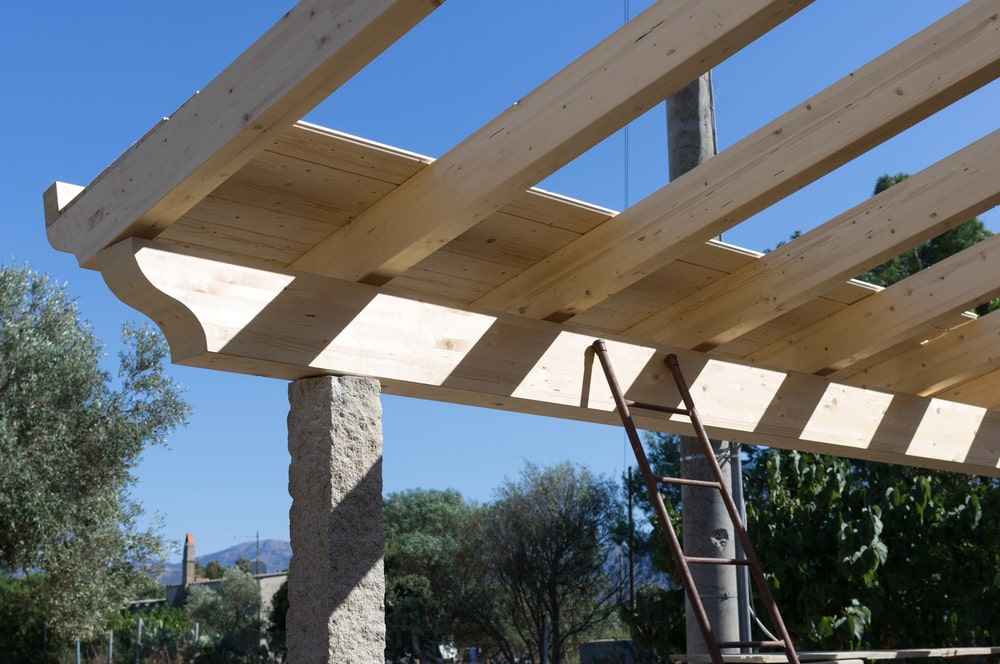

Pergola & Shade-Structure Footings That Stand Up to Wind

Desert shade is priceless—until a gust turns a pretty pergola into a wobbly headache. In Palm Desert, CA, wind uplift and sudden microbursts are the real design loads, and the cure is a footing system sized and anchored for your exact structure. With a detail-minded Concrete contractor, your pergola won’t just look right; it will stay right.

Why Footings Matter More Than the Frame

Posts and rafters get all the glory, but footings carry every pound of gravity and every pound trying to lift the structure in Palm Desert, CA. Oversized surface pads or decorative pavers are not enough. A pro Concrete contractor starts with wind exposure, post spacing, and the total sail area (slats, lattice, or solid cover) to determine footing size and anchor type.

Depth, Diameter, and the Desert Subgrade

Footings need both weight and embedment. Typical residential pergolas here use piers in the 18–30 inch diameter range, deepened to competent soil. In loose, sandy pockets common to Palm Desert, CA, crews over-excavate soft spots and backfill with compacted base before the pour. Rebar cages are set on chairs—not on dirt—to keep steel centered where it actually resists bending.

Post Connections That Do Not Crack Your Slab

Avoid bolting posts straight through a thin patio. Your Concrete contractor will isolate each pier from the surrounding slab with a compressible joint, then set standoff post bases (think heavy-duty, raised steel shoes) into the pier. This clears water, stops wicking, and keeps seasonal slab movement from telegraphing into the posts. If a new patio is part of the project, the slab “floats” around the piers instead of being locked to them—no stress, no spider-web cracks.

Surface Pads vs. Piers vs. Grade Beams

• Piers (individual cylinders) are the desert workhorse: strong, discrete, and perfect for 4–6 posts.



• Grade beams (a reinforced trench tying piers together) help when spans are long or soils vary.



• Surface pads only make sense under freestanding aluminum structures designed for that method—your Concrete contractor will verify manufacturer specs before you commit.



Hardware Choices That Beat the Wind

Specify heavy, corrosion-resistant post bases and through-bolted connections. Simpson-style structural anchors with uplift ratings are the standard, paired with stainless or hot-dip galvanized hardware that tolerates irrigation overspray in Palm Desert, CA. Where beams land on posts, concealed connectors keep lines clean without sacrificing capacity.

Shade, Heat, and Water: Three Small Tweaks with Big Payoff

Ask your Concrete contractor for:

1. A slight roof pitch or slat orientation to bleed wind and shade the hottest hours.



2. A micro-slope on the surrounding slab so rinse water and rain leave seating areas.



3. A drip edge under any solid cover to prevent face streaks and slippery spots after storms.



Conduit, Lighting, and Future Add-Ons

Before concrete, run ¾–1 inch conduit from the house to at least one pier for fan or pendant power. Add a second for low-voltage lights and speakers. In Palm Desert, CA, you will thank yourself for a hidden outlet for misting systems or heaters. Your Concrete contractor can also cast sleeve blocks for future privacy screens without re-drilling finished concrete.

Finishes That Look Intentional

A medium broom texture gives traction without fighting your modern lines. For a refined edge, request a narrow picture-frame band or sandblast finish at the landing. Light integral colors (sand, linen, pale gray) run cooler in Palm Desert, CA and pair with stucco and desert plantings. Sealers should be breathable and low-sheen; slick films belong nowhere near dust and hose water.

Permits, HOA, and Neighbor Smiles

Many neighborhoods want a simple plan set: footing sizes and depths, rebar schedule, anchor call-outs, and a site plan with setbacks. A tidy packet from your Concrete contractor earns quick approvals and saves you from mid-build surprises. Give neighbors a heads-up on pour day—early starts beat the heat.

Quick Decision Checklist

• Pergola size, slat density, and wind exposure in Palm Desert, CA

• Pier count, depth, and diameter with rebar cage details



• Isolated piers with slab separation (no through-bolts into thin patio)



• Anchor hardware with published uplift ratings



• Conduit runs for lights/fans and future add-ons



• Finish, color, and breathable sealer plan
